What is Tempered Glass: Complete Guide to Safety Glass

Table of Contents

• Understanding Tempered Glass
• Manufacturing Process and Properties
• Applications and Uses
• Common Challenges and Solutions
• Conclusion and Next Steps
• Frequently Asked Questions

Introduction

Tempered glass is a type of safety glass manufactured through a specialized heat treatment process that makes it 4-5 times stronger than regular glass. Also known as toughened glass, this material undergoes controlled heating and rapid cooling to create internal stress patterns that dramatically enhance its strength and safety characteristics.

Direct answer: Tempered glass is safety glass created by heating standard annealed glass to approximately 1,200°F (620-700°C) and then rapidly cooling it with high-pressure air jets, creating a product that is significantly stronger and breaks into small, blunt pieces rather than dangerous sharp shards.

Key outcomes you’ll gain from this guide:

• Understanding how tempered glass properties provide enhanced strength and safety
• Knowledge of the glass tempering process and why it cannot be modified afterward
• Clear guidance on where building codes require tempered safety glass
• Comparison tools to choose between tempered glass, laminated glass, and other options
• Practical solutions for common tempered glass challenges

Understanding Tempered Glass

Tempered glass is classified as safety glass because of two defining characteristics: its exceptional strength and its unique break pattern that minimizes injury risks. Unlike standard glass that shatters into large, jagged shards, tempered glass breaks into small granular chunks with blunt edges. This distinction makes it the required choice in residential settings and commercial spaces where human safety is a top concern.

Building codes across the United States mandate tempered safety glass in hazardous locations—areas where people might fall into glass, where glass is near walking surfaces, or where thermal stress from temperature changes could cause failure. Understanding these requirements helps you avoid costly replacements and ensure compliance with safety standards.

Physical Properties

The remarkable strength of tempered glass comes from the internal stress patterns created during the tempering process. The outer surfaces of the glass are placed under high surface compression (at least 10,000 psi or 69 MPa), while the interior core remains under tension. This dual-stress structure is what makes tempered glass approximately four to five times stronger than annealed glass of the same thickness.

Surface compression acts like a protective shield—any force applied to the glass surface must first overcome this compression before it can cause damage. This explains why tempered glass demonstrates superior impact resistance and can withstand significantly higher bending loads and wind pressure than regular glass.

Safety Characteristics

Manufacturing Process and Properties

The manufacturing process for tempered glass transforms ordinary annealed glass into a high-performance safety material through precise thermal treatment. Understanding this process explains both the exceptional properties of tempered glass and its inherent limitations.

Thermal Tempering Process

The thermal tempering process begins with annealed float glass that has been completely fabricated—cut to size, edges polished, and any holes drilled. This pre-tempering fabrication requirement is critical because the glass cannot be modified afterward.

1. Heating phase: The prepared glass enters a tempering furnace where it is heated uniformly to approximately 1,200°F (620-700°C), above its annealing point but below the temperature where it would soften and deform.
2. Quenching phase: Immediately upon reaching target temperature, the glass is rapidly cooled using high-pressure air jets directed equally at both surfaces. The outer layers cool and solidify first while the inside cools more slowly.
3. Stress formation: As the interior finally cools and contracts, it pulls against the already-solidified outer surfaces, creating permanent compression in the outer layers and tension in the core.

This rapid cooling process—where the glass is cooled rapidly within seconds—locks in the stress patterns that give tempered glass its characteristic strength and safety properties.

Strength and Thermal Properties

The enhanced strength from tempering manifests in multiple ways. Mechanical strength increases dramatically, allowing tempered glass to resist impacts, bending forces, and wind loads that would shatter standard glass. This makes it ideal for glass doors, large glass windows, and architectural applications where structural demands are significant.

Thermal shock resistance is another major benefit. Tempered glass can withstand temperature changes of 200-250°F without cracking—far exceeding the thermal resistance of annealed glass. This heat resistance makes it essential for kitchen appliances, oven doors, and any application involving high temperatures or extreme temperature fluctuations.

The relationship between thermal stress tolerance and surface compression is direct: the same internal stress structure that provides mechanical strength also prevents thermal stress from initiating cracks.

Limitations and Constraints

Because of the internal stress patterns, tempered glass cannot be cut, drilled, edged, or modified in any way after the tempering process. Any attempt to alter the glass surface disrupts the stress balance and causes the entire pane to shatter. This means all sizing, hole placements, and edge finishing must occur before tempering—requiring precise measurements and careful planning.

A less common but notable concern is spontaneous breakage from nickel sulfide (NiS) inclusions. These microscopic contaminants, trapped during glass manufacturing, can cause the glass to spontaneously break months or years after installation. Heat soaking—holding tempered glass at elevated temperatures to force defective panes to break before installation—reduces this risk from approximately 1 in 10,000 square meters to about 1 in 1,000,000 square meters. For critical installations where unexpected breakage poses significant risk, heat-soaked tempered glass provides additional reliability.

Applications and Uses

The combination of enhanced strength, thermal resistance, and safe break pattern makes tempered glass the preferred choice wherever human safety, durability, or building codes demand more than regular glass can provide.

Residential Applications

Homeowners encounter tempered glass requirements in several common situations where injury risks from broken glass are elevated:

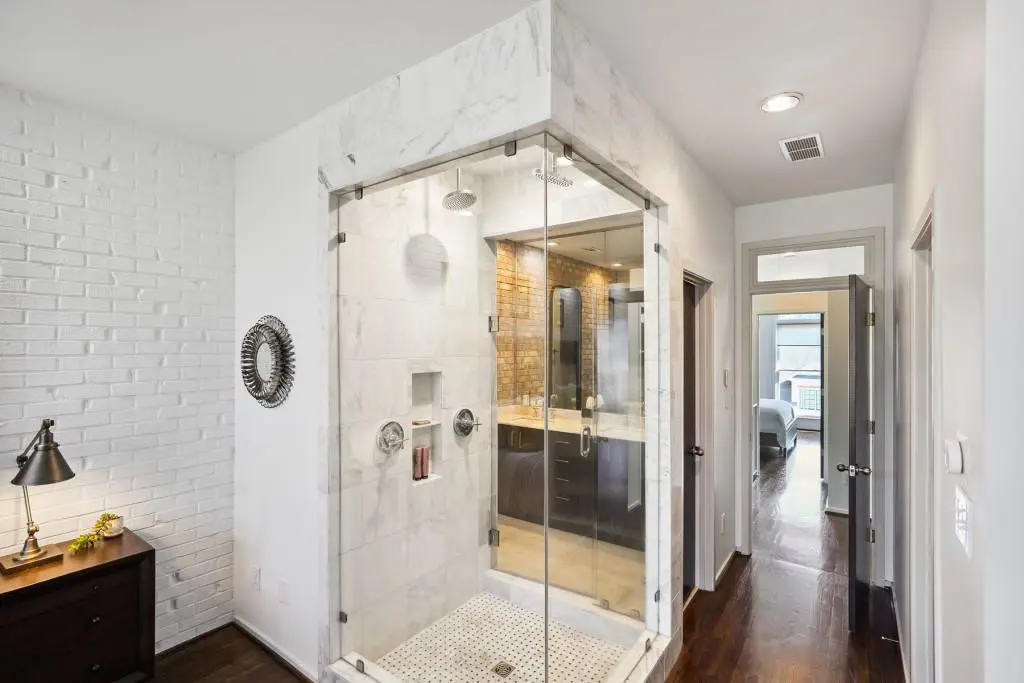

• Shower doors and bathroom enclosures: Frameless shower doors and tub surrounds must use tempered glass per building codes. The combination of wet surfaces, hard tile floors, and human contact makes this a high risk area for falls and impacts.
• Glass tables and furniture: Tabletops, shelving, and other furniture applications benefit from tempered glass’s impact resistance and safe break pattern—particularly important in homes with children.
• Patio doors and large windows: Sliding glass doors and tempered glass windows near walkways, doors, or low to the ground require safety glazing, and many homeowners also choose solar window film to reduce glare and heat gain through these large openings. Building codes typically mandate tempered glass when the bottom edge is less than 18 inches above the floor.
• Kitchen appliances: Oven doors, cooktop surfaces, and other applications involving extreme temperatures require tempered glass’s thermal shock resistance, while adjacent windows and doors can benefit from architectural window films to improve comfort and energy efficiency.

Commercial and Industrial Uses

Commercial spaces rely on tempered glass for both safety compliance and performance requirements:

Tempered Glass vs Other Safety Glass Types

Choosing between glass types requires understanding their distinct characteristics:

Criterion	Tempered Glass	Laminated Glass	Regular Annealed Glass
Strength	4-5× stronger than annealed	1-2× stronger than annealed	Baseline
Break Pattern	Small blunt pieces, falls out	Cracks but holds together	Large sharp shards
Fragment Retention	No—pieces separate	Yes—interlayer holds glass	No
Post-Production Modification	Cannot be cut or drilled	Can be cut before lamination	Can be cut and modified
Cost	2-3× annealed glass	2-4× annealed glass	Baseline
Best Applications	Shower doors, side windows, furniture	Skylights, hurricane zones, security	Non-hazardous locations
When glass retention after breakage matters—such as overhead glazing, hurricane-prone areas prone to flying debris, or security against forced entry—laminated glass provides superior protection because the interlayer holds glass shards in place, and advanced options like bullet resistant window film and glazing can further delay forced entry in high-risk environments.
Security window films applied to existing glass can provide similar fragment retention for windows already installed.

For most ground-level safety glazing applications where strength and safe break pattern are the primary concerns, tempered glass offers excellent performance at lower cost than laminated alternatives.

Common Challenges and Solutions

Working with tempered glass presents specific challenges that require planning and appropriate strategies to address effectively.

Cannot Be Cut After Tempering

Because any modification causes tempered glass to shatter, precise measurements are essential before ordering. Work with professional glaziers who can take accurate dimensions and account for the window frame, hardware cutouts, and edge clearances. Digital templates and CNC cutting equipment help ensure accuracy. Building in verification steps before final tempering can prevent costly remakes.

Complete Breakage Upon Impact

While tempered glass’s break pattern enhances safety by eliminating sharp edges, the entire window or door panel fails when breakage occurs. For applications requiring glass retention—such as security glazing or areas where falling glass could cause injury—consider laminated tempered glass (tempered layers bonded with interlayers) or apply security window films to improve safety. These approaches combine the strength of tempered glass with fragment retention properties and maintain good clarity.

Higher Initial Cost

Tempered glass typically costs 2-3 times more than annealed glass due to the additional manufacturing process, energy costs, and quality control requirements. However, this higher upfront investment often provides long-term value through reduced replacement frequency, lower injury liability, building code compliance, and longer service life in demanding applications. For commercial installations, the cost difference is typically minor compared to potential liability exposure from using non-compliant glazing.

Conclusion and Next Steps

Tempered glass is essential safety glass for any application involving human contact, impact potential, thermal stress, or building code requirements. Its combination of 4-5 times greater strength than annealed glass and safe break pattern into small blunt pieces makes it the required choice for shower doors, glass doors, large windows, and numerous commercial applications.

Immediate next steps:

1. Assess your current glass installations and identify areas where building codes require safety glazing
2. Consult local building codes (IRC R308 or IBC 2406) for specific requirements in your jurisdiction
3. Get quotes from professional glaziers for custom tempered glass, ensuring precise measurements before ordering
4. Consider heat-soaked tempered glass for critical or difficult-to-replace installations

Related topics to explore: Window film alternatives for existing glass, laminated glass options for overhead or security applications, switchable smart glass films, and specific building code requirements for swimming pools, stairs, and commercial entries. Professional installation services can help determine the best solution for your project.

Frequently Asked Questions

Is tempered glass unbreakable?

No, tempered glass is not unbreakable. While significantly stronger than regular glass, it can still break from extreme impacts, edge damage, or nickel sulfide inclusions. The key safety advantage is that when it does break, it shatters into small, relatively harmless granular chunks rather than dangerous sharp shards.

Can tempered glass be recycled?

Yes, tempered glass is fully recyclable. However, due to its stressed state, broken tempered glass cannot be re-tempered. Instead, it must be crushed and melted down to be incorporated into new float glass production.

How can you tell if glass is tempered?

Look for a permanent manufacturer’s etched mark in a corner of the glass. This certification mark is required on safety glazing. You can also view the glass through polarized sunglasses to see characteristic strain patterns. Or look for slight surface waviness (roller waves) from the tempering process. When in doubt, consult a professional glazier to find tempered glass in your building or project.

Does tempered glass provide UV protection?

No, tempering does not add UV protection. Light transmission and UV filtering depend on glass tint, coatings, or specialized interlayers—not the tempering process itself. If UV protection is needed, specify glass with appropriate coatings or use window film.

How long does tempered glass last?

Properly installed tempered glass can last decades under normal conditions. Most failures from nickel sulfide inclusions occur within 6-8 years after manufacturing. Avoiding edge damage during installation and handling helps ensure long service life.

Is tempered glass required by building codes?

Yes, building codes require tempered safety glass in numerous “hazardous locations”. These include all glass doors, windows within 24 inches of doors, shower and tub enclosures. As well as windows with bottom edges less than 18 inches from the floor, and glass adjacent to stairs or walking surfaces. Specific requirements vary by jurisdiction, particularly in regions exposed to extreme weather.

Can tempered glass be repaired if cracked?

No, tempered glass cannot be repaired. Once cracked, the entire pane shatters due to the release of internal stress. The only solution is complete replacement with a new tempered glass panel fabricated to the same specifications.

What is the cost difference between tempered and regular glass?

Tempered glass typically costs 2-3 times more than annealed glass of the same size and thickness. Custom sizes, thicker glass, heat soaking, and expedited production increase costs further. However, the safety benefits, code compliance, and reduced liability often justify the higher investment.
